Amflow PR Carbon Pro 800 Wh

Product detailed description

The Amflow PR Carbon Pro model is equipped with top-tier components, including SRAM wireless shifting SRAM S1000 Eagle Transmission, a FOX Float X Performance rear shock, FOX 36 Performance fork, and Magura Gustav Pro hydraulic disc brakes.

• DRIVE – naturally refined and powerful performance with smooth assistance

The Avinox M2S from DJI delivers naturally refined, powerful performance. Compared to the previous generation, power has increased by 45.9% and torque by 21.6%.

Weighing only 2.59 kg and producing 130 Nm / 1300 W (up to 150 Nm and 1500 W in short-term Boost mode), no hill will catch you off guard. The drive unit uses multiple high-precision sensors and intelligent algorithms to continuously adjust output in real time, providing a smooth and natural pedaling feel. The Avinox Drive system also features a special Auto mode [6] that automatically adapts assistance to terrain and riding position. For challenging trails or steep climbs, simply activate Boost mode to instantly access up to 150 Nm of torque and 1500 W of high-power assistance.

Innovative compound planetary gears and helical gear design suppress the operating sound of the Avinox M2S Drive Unit to as low as 45dBA. On descents, rattling is kept to a minimum, so the sound of the wind and trail feedback become clearer, allowing you to focus on your rhythm and handling, fully immersing yourself in the joy of riding.

The system is controlled wirelessly via two Bluetooth handlebar controllers and the 5 cm OLED Avinox DP100 Control touchscreen. By connecting to the Avinox Ride mobile app and optionally inserting a SIM card under the display, you can record all ride data and instantly sync it with Strava. The app also provides bike security through remote tracking and contactless unlocking. Additionally, you can lock the bike with a password on the display, preventing the motor from operating without it. An integrated USB-C port above the display can be used to charge lights or a smartphone with up to 65 W of power.

Smart Heart Rate Control – in the Avinox Ride app, you simply set your target heart rate zone and connect a heart rate monitor. The drive system then automatically adjusts the motor output based on real-time data, keeping you in the optimal zone for a safe and controlled ride.

• BATTERY – Removable battery with extended range

  Amflow PR features a removable battery for convenient charging and quick swapping. This flexibility solves the challenge of finding charging stations and enables fast energy replenishment on long rides. At the same time, it reduces maintenance costs and makes every ride more worry-free.

  The removable Avinox RS800 battery with a high capacity of 800 Wh features a quick-release mechanism and weighs 4 kg. A fully charged battery provides a range of up to 158 km. Paired with the Avinox M2S drive unit, the system delivers up to 1500 W of peak power.

  The frame supports the installation of a removable 600 Wh battery (Avinox RS600). Through the control display or the Avinox Ride app, you can easily set battery discharge priorities and view independent charge levels of both the main and auxiliary batteries, helping to reduce range anxiety. ∗ When used as an external battery, the Avinox RS600 is compatible, due to size constraints, only with size L, XL, and XXL frames of the Amflow PR Carbon, and XL and XXL frames of the Amflow PR Carbon Pro. Sold separately. Additional configurations coming soon.

  The 12 A / 508 W GaN charger is compact and lightweight, enabling fast charging in various scenarios. Charging from 0% to 80% takes approximately 1 hour 36 minutes; from 0% to 100% approximately 2 hours 25 minutes. It supports customizable charging limits (100%, 95%, 80%, 70%), allowing you to set charging targets according to your riding needs. Optimized battery care helps extend battery lifespan.

•  FRAME

• SUSPENSION

•  WHEELS

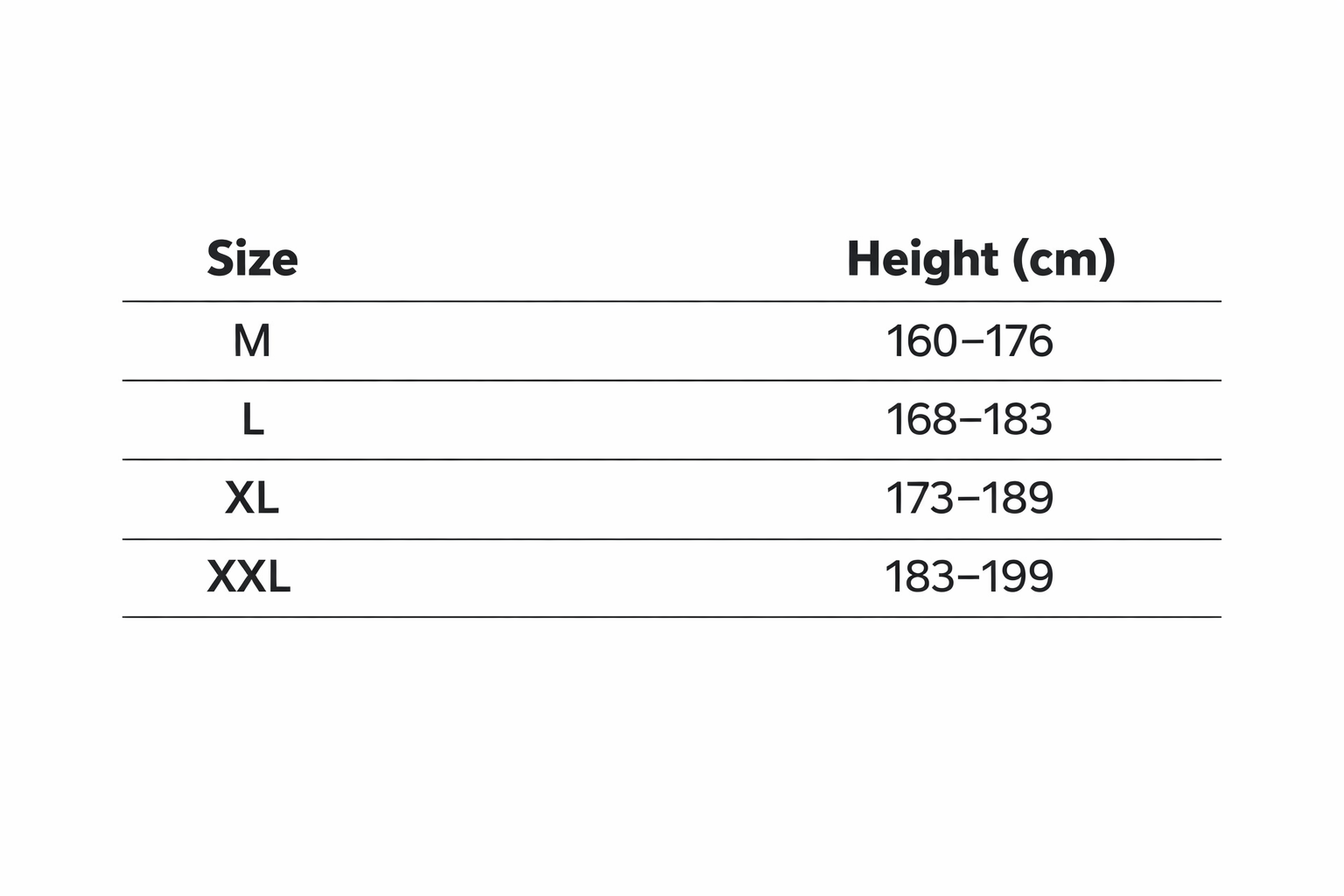

•  GEOMETRY OF THE BIKE

The bike is designed for riders with a maximum weight of 125 kg.

Amflow PR Carbon Pro features a cutting-edge progressive geometry. With precision adjustments to the head tube angle (5 positions), bottom bracket height (2 positions), and chainstay length (4 positions), it offers up to 40 geometric combinations ^[2]. This allows the bike to adapt precisely to different terrains and riding styles, empowering you to enjoy the art of tuning and take full control of your ride.

 PROVEN RELIABILITY

All components of the Amflow PR Carbon Pro e-bike and the DJI Avinox Drive System are certified by recognized organizations such as TÜV SÜD and TÜV Rheinland. Additionally, Amflow has its own testing platform, conducting a series of stress tests – including frame durability, water resistance, and long-distance transport under real-world riding conditions. This ensures product stability and safety even in the most extreme environments, providing comprehensive quality assurance.
